Membrane Disc Diffuser

Home > Products > Aeration Equipment > Membrane Disc Diffuser
INQUIRY
FAVORITE

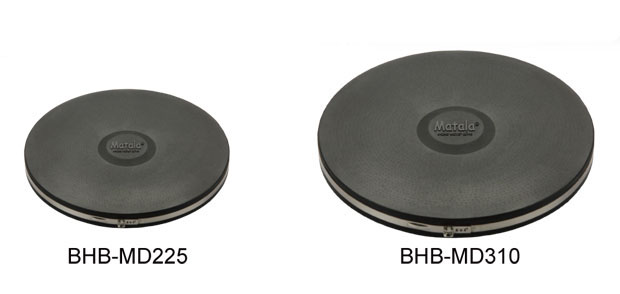

Fine Bubble Membrane Air Diffusers (BHB-MD225/MD310)
Lowest back pressure in the market

Features and benefits:

  • High quality EPDM membrane with highly durable base constructed of molded polypropylene.
  • The lowest back pressure membrane diffuser in market.
  • Precision perforated I-shaped slits open when airflow is present and close when airflow is stopped. In this way slits resist tearing, and stay cleaner longer.
  • A standard 3/4" PT pipe thread allows convenient connection.
  • Stainless steel 304 clamping ring holds the membrane firmly in place.
  • Triple o-rings support the center of the membrane when airflow is absent.
  • Specifications
Model BHB-MD225BHB-MD310
Air flow (cfm) / (lpm) 0.9~4.2 / 25~120 2.8~7.0 / 80~200
Diameter (in) / (mm) 8.82 / 224 12.2 / 310
Disc body ABS Nylon+fiberglass
Membrane EPDM
Fixation 304 St. Steel clamping ring
Connection 3/4" PT , MALE
Ship weight (lbs) / (g) 0.77 / 350 1.99 / 900



  • The above specifications are subject to change without prior notice.
