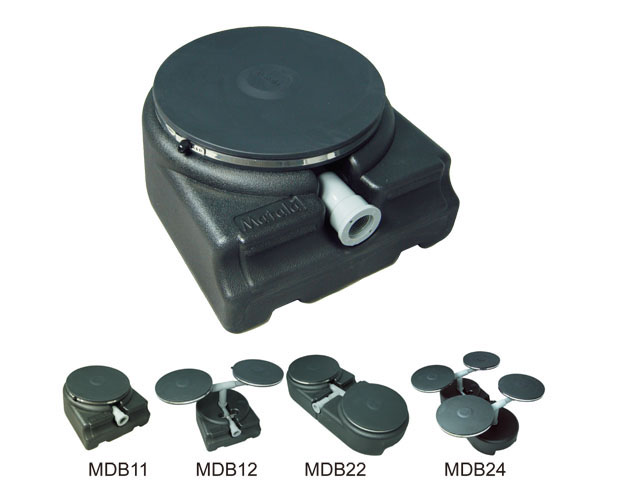

Air Diffuser Platform with Disc

Makes pond and lake aeration easier than ever!

Features and benefits:

  • The air diffuser platform allows you to mount air diffuser(s) firmly at the bottom of the pond. It keeps the air diffusers up and out of the mud.
  • The air diffuser platform is designed with a hollow base that can be filled with sand or gravel.
  • The Matala EPDM disc diffusers are designed for industrial heavy duty installation.
  • Precision perforated I-shaped slits are opened when air flows. The slits are closed when airflow is stopped. In this way slits resist tearing, and stay clean longer.
  • These diffusers offer the lowest back pressure in the market, only increases less than 6 inches of water depth back pressure, allowing you to utilize your air pump in the most efficient way.
  • A quick uni-pack available to easy connect 2 air diffuser platforms together with only one 3/4” PT threaded outlet connector. 4 section hose socket 3/8", 1/2", 5/8", 1".
  • Specifications
ModelMDB11/11HMDB12MDB22MDB24
Air volume (cfm) / (lpm) 0.9~4.2 / 25~120 2.1~8.4 / 60~240 2.1~8.4 / 60~240 4.2~16.8 / 120~480
Platform : Diffuser (q’ty) 1 : 1 1 : 2 2 : 2 2 : 4
Package dimensions: LxWxH (in) / (mm)

12.2x5.5x10.6

310x140x270

13x7.5x10.6

330x190x270

23.6x5.5x10.6

600x140x270

23.6x7.6x10.6

600x194x270

Ship weight (lbs) / (kg) 3.3 / 1.5 4.6 / 2.1 6.4 / 2.9 9.5 /4.3



  • The above specifications are subject to change without prior notice.
  • 12" EPDM disc diffuser is available for higher flow rate application. The flow rate could be almost double.

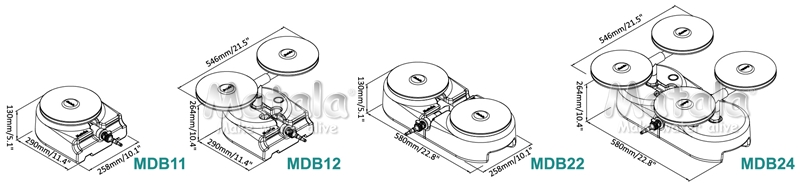

Dimension:
