Envi Drain

Home > Products > Drainage > Envi Drain
INQUIRY
FAVORITE

Feature and benefits

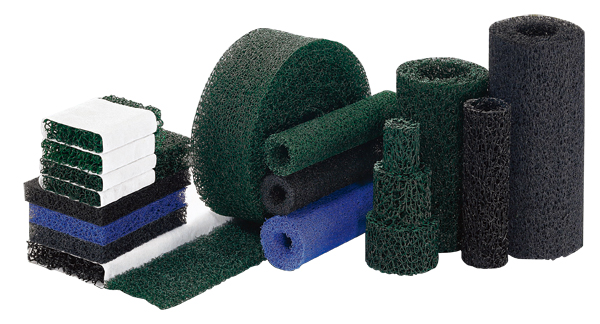

Matala EnviDrain is the most advanced efficient and economical solution for drainage, infiltration and sub-surface irrigation.
Matala EnviDrain is composed of thermo-polypropylene fibers formed into a 3-dimensional web structure with high compression strength and structural strength while providing a maximum void space, surface porosity, and excellent drainage/ infiltration efficiency.

  • Specifications
  • Features
  • Applications

MataIa® EnviDrain Pipe

ProductMeasurements (cm)
Outside Diameter x Length
Code Measurements (inch)
Outside Diameter x Length
EDPPD150GN ∅ 15 x 200 cm ∅ 5.9 x 78.7 inches
EDPPD125GN ∅ 12.5 x 200 cm ∅ 4.9 x 78.7 inches
EDPPD080GN ∅ 8.0 x 200 cm ∅ 3.15 x 78.7 inches


Matala® EnviDrain Panel

ProductMeasurements (cm)
Thickness Diameter x Length
Code Measurements (inch)
Thickness Diameter x Length
EDPP0550GN 5.0 x 50 x 200 cm 1.97 x 19.68 x 78.7 inches
EDPPO530GN 5.0 x 30 x 200 cm 1.97 x 11.81 x 78.7 inches
EDPPO420GN 4.0 x 20 x 200 cm 1.57 x 7.87 x 78.7 inches
EDPP0320GN 3.0 x 20 x 200 cm 1.18 x 7.87 x 78.7 inches


Matala® GeoNet

ProductMeasurements (cm)
Thickness Diameter x Length
Code Measurements (inch)
Thickness Diameter x Length
GNPA8016BK 1.6 x 100 x 5000 cm (Nylon) 0.63 x 39.37 x 1968.5 inches
GNPA8020BK 2.0 x 100 x 5000 cm (Nylon) 0.79 x 39.37 x 1968.5 inches
GNPP8016BK 1.6 x100 x 5000 cm 0.63 x 39.37 x 1968.5 inches
GNPP8020BK 2.0 x 100 x 5000 cm 0.79 x 39.37 x 1968.5 inches


MataIa® GeoNet binding with GeoGrid reinforcement

ProductMeasurements (cm)
Thickness Diameter x Length
Code Measurements (inch)
Thickness Diameter x Length
GNPA8220BK 2.0 x 100 x 1500 cm (Nylon) 0.79 x 39.37 x 590.5 inches
GNPA8230BK 3.0 X 100 X 1500 cm (Nylon) 1.18 X 39.37 X 590.5 inches
GNPP8220BK 2.0 X 100 X 1500 cm 0.79 X 39.37 X 590.5 inches
GNPP8230BK 3.0 X100 X 1500 cm 1.18 X 39.37 X 590.5 inches
Features and Benefits of EnviDrain

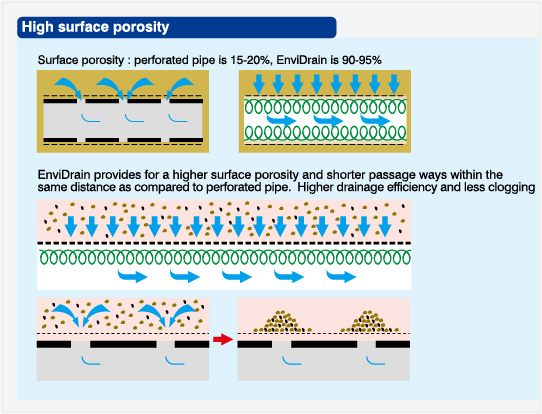

1. High surface porosity: (EnviDrain is 90%-95% while perforated pipe is 15-20%)
  • It provides for multiple evenly spread pores for water to pass and also shortens the distance for water to flow through sand, soil or stone before reaching the drainage core.
  • Reduced occurrance of plugging, even when there is lots of water accumulated in a short time.


2. High Compression Strength:
    Envidrain has a three-dimensional web structure and is made of thermo-polypropylene fiber
    which is curled, looped and welded at multiple points. This results into a superior compression
    strength and buffer of forces in all directions and angles.
3. Excellent drainage and water storage capacity: (85%-90% void space)
    Envidrain pipe has a hollow cylindrical core which temendously increases the draining efficiency.

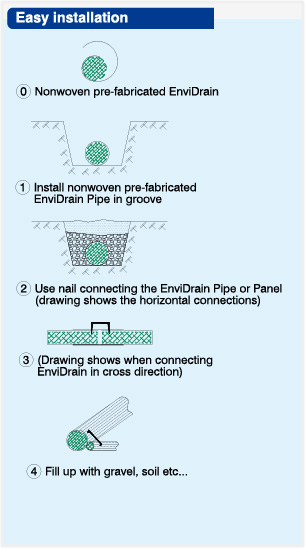

4. Light weight and Easy installation:
    Easy installation and easy transportation.
5. Durable:
    Weather and chemical resistance.

High compression strength
Compression Strength EnviDrain Pipe
Test Item / Product Type EDPPD080GN EDPPD125GN EDPPD150GN
Compression Strength at 5% Strains of external diameter 1493 1147 1075
Compression Strength at 10% Strains of external diameter 3073 1927 1706
Compression Strength at Broken(Kgf/m) 4553 2587 2030
  • tests method ref. : ASTM D2412-96a
  • compress speed : 12.0±0.5mm/min

Compression Strength EnviDrain Panel
Test Item / Product Type EDPP0320GN EDPP0420GN EDPP0530GN/  EDPP0550GN
Compression strength at 30% Strain(Kgf/㎡)   10.530 13.700 35.598
Compression strength at 70% Strain(Kgf/㎡)   64.775 54.700 27.4238
  • tests method ref. : ASTM D1621-04a

Tensile Strength Geonet (TYPE : GNPA8020BK)
Tensile Strength (KN/m) Horizontal Strength 1.3
Vertical Strength 1.8
  • tests method ref. : CNS 5610-1987
Sample proceeding in oven with temperature 85℃ for 4hrs.
Moved out from oven in room temperature (23℃/65%RH) for 1 hour before proceeding the test.

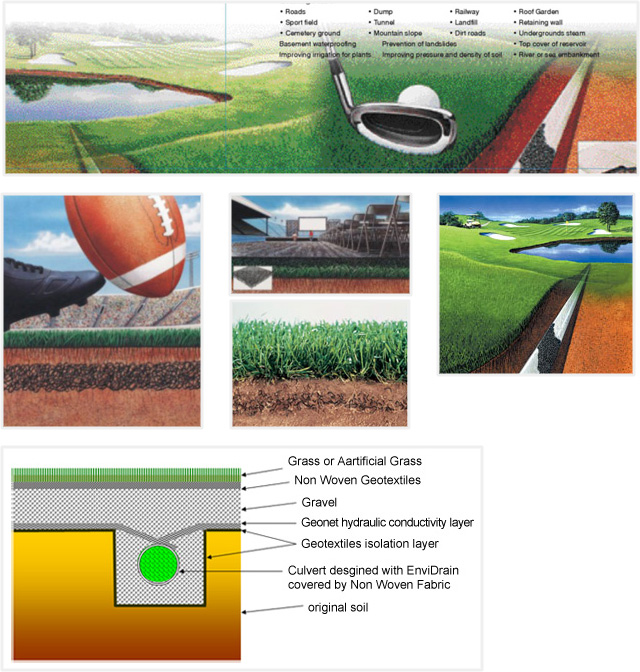

1. Sport Field Draiange

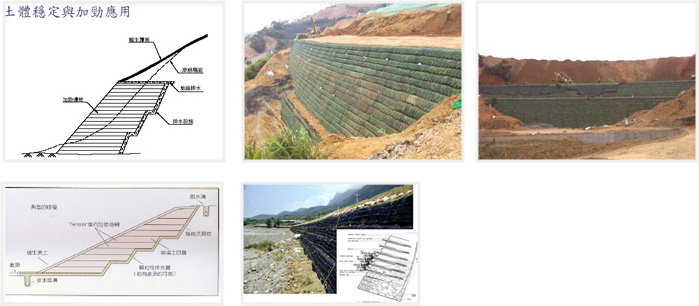

2. Retaining Wall




Basic leveling & compacting

Lay out the EnviDrain Pipes
(covered with geotextile)
Covering with geogrid.

Soil bag arrangement

Spread out and compacting of first soil layer

Folding back and warping the geogrid

Spread out and compacting of 2nd soil layer

Seeding & plantation

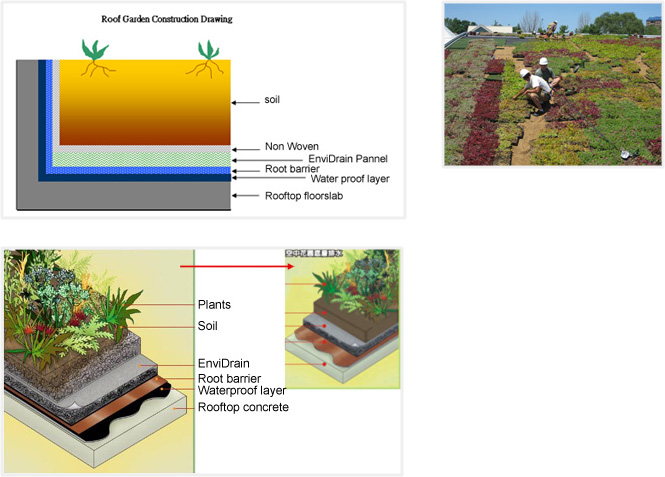

3. Roof Garden
