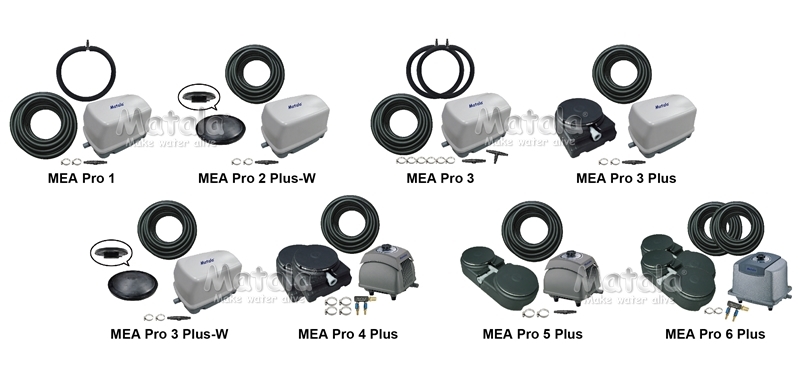

Matala Ez-Air Pro Kits
Features and benefits:
- Breathe life into your pond or lake!
- Improve fish health.
- Reduce algae growth and sludge build up.
- De-ice to prevent winter fish kill.
- Application for aquaculture, wastewater, small lake and koi pond.
- High efficiency.
- Industrial grade air pump.
- Simple maintenance.
- Completely oil-free.
- Overload protection.
- Silent operation.
- Long life expectancy.
| Specifications | MEA Pro 1 | MEA Pro 2 Plus | MEA Pro 3 | MEA Pro 3 Plus | MEA Pro 4 Plus | MEA Pro 5 Plus | MEA Pro 6 Plus |
|---|---|---|---|---|---|---|---|
|
Max flow(115V/60Hz) (cfm) / (lpm) |
1.1 / 32 | 1.1 / 32 | 2.5 / 70 | 2.5 / 70 | 2.9 / 82 | 3.5 / 100 | 4.2 / 119 |
| Max flow(230V/50Hz) (cfm) / (lpm) | 1.1 / 31 | 1.1 / 31 | 2.3 / 65 | 2.3 / 65 | 3.5 / 100 | 3.7 / 105 | 5.2 / 146 |
|
Rated voltage (V) |
AC 110/115/120 or AC 220/230/240 | ||||||
|
Power supply frequency (Hz) |
50 / 60 | ||||||
|
Suggestion operation depth |
Up to 6ft | Up to 6ft | Up to 7ft | Up to 7ft | Up to 8ft | Up to 10ft | Up to 10ft |
| Rated performance (cfm) / (lpm) | 0.92 / 26 | 0.92 / 26 | 1.60 / 45 | 1.60 / 45 |
2.30 / 65 |
2.97 / 84 | 3.60 / 102 |
|
Power (w) |
24 |
24 | 38 | 38 | 61 | 82 | 110 |
|
Noise level (dB) |
36 |
36 | 39 | 39 | 38 | 38 | 40 |
|
Closed pressure (psi) / (bar) |
5.0 / 0.34 |
5.0 / 0.34 | 6.28 / 0.44 | 6.28 / 0.44 | 6.7 / 0.46 | 7.68 / 0.54 | 6.5 / 0.45 |
|
Suggested pond size (Gal.) / (L) |
1,000~7,000 3,785~26,497 |
3,000~9,000 11,356~34,067 |
5,000~16,000 18,927~60,565 |
5,000~16,000 18,927~60,565 |
8,000~20,000 30,283~75,706 |
10,000~24,000 37,853~90,848 |
15,000~45,000 56,780~170,340 |
|
Parts |
25LPx1 WAHØ3/8x20ftx1 OD-8x1 |
25LP
WAHØ3/8x30ftx1 MD-5Wx1 |
40LPx1
WAHØ3/8x30ftx1 OD-8x2 |
40LPx1
WAHØ3/8x30ftx1 MDB11x1 |
60Lx1
WAHØ3/8x50ftx1 MDB11x2 SC-2x1 |
80Lx1
WAHØ3/8x30ftx1 MDB22x1 |
100Lx1
WAHØ1/2x30ftx2 MDB22x2 SC-2x1 |
|
Diffuser (in) / (mm) |
Ø1/2x8 Ø12.7x203 |
5.6x5.6x1.7 143x143x43 |
Ø1/2x8 Ø12.7x203 |
12x6x11 314x140x270 |
12x6x11 314x140x270 |
24x11x6 600x280x150 |
24x11x6 600x280x150 |
The above specification are subject to change without prior notice.
