Cabinet Systems

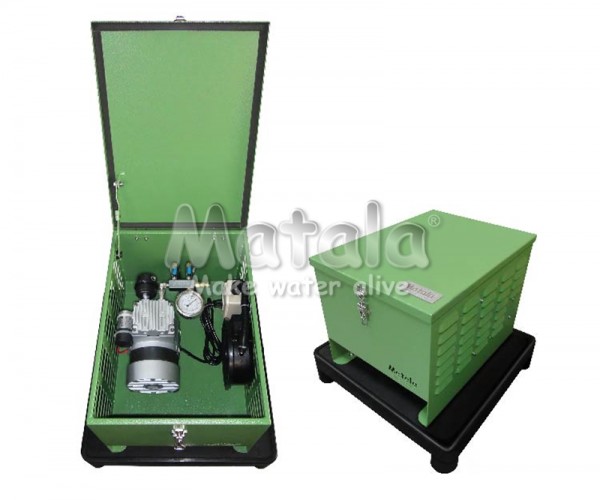

This complete Matala aeration system includes all the features of our Rocking pistone compressor and it is built into a heavy duty cabinet. The locking cabinet is landscape green color and designed for outdoor extreme weather conditions. The cabinet stands on a solid support base to maintain a level installation. Within the cabinet we have added a cooling fan with cross flow ventilation. The compressor plugs into a built in outlet. All components are protected within. The heat protection hose leads externally and all you have to do is connect your air hose. Very simple to install and operate.
The cabinet should be located above pond water level and flood zone and within 50 feet of the shore. Do not bury.
Features and benefits
- Rocking Piston Compressor includes air filter and air manifold system.
- Full locking metal cabinet, landscape green color.
- Support Base.
- Built in outlet.
- Cross flow ventilation fan.
- Easy install and operation.
- Heavy weather resistant.

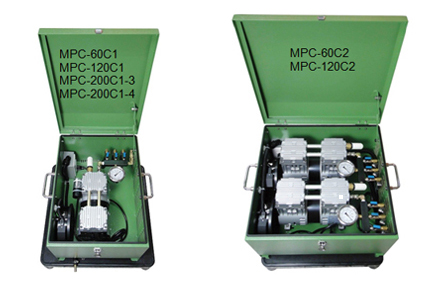

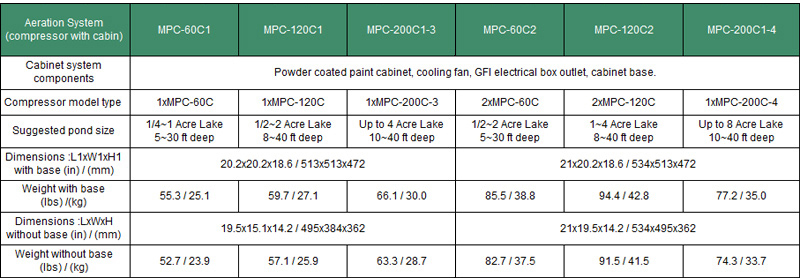

Model | MPC-60C1 | MPC-120C1 | MPC-200C1 |
---|---|---|---|
Cabinet system components | Powder coated paint cabinet, cooling fan, electrical box outlet, cabinet base | ||
Compressor model | 1xMPC-60C | 1xMPC-120C | 1xMPC-200C |
Aluminum manifold with swivel union | 2 way valve | 3 way valve | 4 way valve |
Suggested pond size |
1/4~1 Acre Lake 5~30 ft deep |
1/2~2 Acre Lake 8~40 ft deep |
Up to 8 Acre Lake 10~40 ft deep |
Dimensions: L1xW1xH1 with base (in)/(mm) |
20.2x20.2x18.6 513x513x472 |
||
Weight with base (lbs)/(kg) |
51.6 / 23.4 | 56.0 / 25.4 | 63.3 / 28.7 |
Package dimensions: LxWxH (in)/(mm) |
21.7x21.7x21.7 / 550x550x550 | ||
Ship weight (lbs)/(kg) | 58.4 / 26.5 | 62.8 / 28.5 | 70.3 / 31.9 |
* Ship weight includes the air filter set.
• Ship weight of cabinets (with fan): For single compressor (MPCC1) is 40.1lbs / 18.2kg; Package dimension is 21.7x21.7x20.5 (inch) / 550x550x520 (mm).
• The above specifications are subject to change without prior notice.
