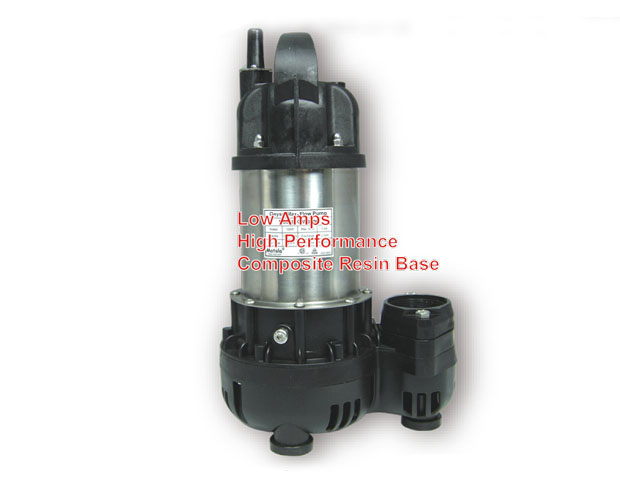

GeyserMax-Flow Submersible water pump

Features and benefits:

  • Wide range of application
  • Built-in overheat protection
  • Composite resin base
  • Corrosion resistant
  • High performance
  • Long running life
  • Continuous duty
  • Low amps
  • 1-1/2” & 2” discharge
  • 19ft power cord
  • 2 years warranty
  • Specification
  • Videos
ModelGM-3200GM-3900GM-4700GM-5400GM-6200
HP

1/5

1/5 1/3 1/2 1
Outlet Size (in) 1-1/2 1-1/2 2 2 2
Flow Rate Flow rate GPH@Ft
5 ft 2423 3360 4470 5150 6020
10 ft 1193 2270 4060 4450 5865
15 ft 29 1150 3120 3740 5360
20 ft - 250 2200 3000 4640
25 ft - - 850 2040 3800
30 ft - - - 865 2670
35 ft - - - - 1620
Max Head (ft) 15.7 22.5 27.5 32.8 41
Max Flow (GPH) 3200 3900 4700 5400 6200
Max Amp 2.5 2.5 3.2 5.0 6.7
Pass Solid
(in)/(mm)
3/4 / 19
1/3 / 8 (with screen)
Dimensions :LxWxH
(in) / (mm)
10x8x17 / 265x205x425
Weight (lbs) / (kg) 15.4 / 7 18 / 8 18 / 8 20 / 9 22 / 10



  • The above specifications are subject to change without prior notice.



GeyserMax-Flow Re-build Disassembly





GeyserMax-Flow Re-build Assembly
