Air Diffuser Tubing

Home > Products > Aeration System > Air Diffuser Tubing
INQUIRY
FAVORITE

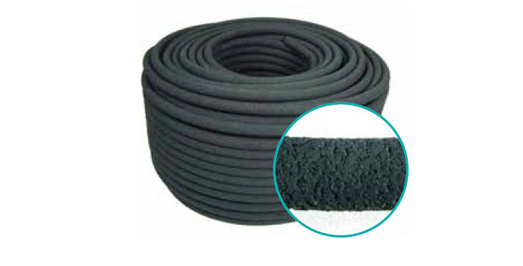

Air Diffuser Tubing
A simple, effective, reliable and economic way to aerate your aquaculture farms.

Features and benefits:

  • It is made from high-efficiency rubber with special designed pore size and its numerous pore distribuiton to create maximum fine bubbles which slowly release in the water. The air flow is 0.45-1.1 cfm/ft (0.3-1 lpm/cm).
  • Durable with low start up, maintenance and replacement cost.
  • Specifications
  • RD&OD diffuser
  • Aeration Kits
  • Accessories
ModelMDT-1/2
Dimension length (ft)/(m) 500 / 150
Dimensions: ID (in)/(mm) 1/2 / 12.7
Dimensions: OD (in)/(mm) 0.77 / 19.5
Dimensions: Dia.xH (in)/(mm) 23.6x23.6x11.8
600x600x300
Weight (lbs) / (kg) 39.7 / 18



  • The above specifications are subject to change without prior notice.
Aeration Kits for Air Diffuser Tubing

RD & OD diffuser



• Super low back pressure.
• Flexible.
• Self-weighted.
• Easy installation.
• Easy maintenance.

RD & OD diffuser



ModelRD-9RD-12RD-15RD-24RD-36OD-8
Dimension length (in)/(mm) 9 / 229 12 / 305 15 / 381 24 / 610 36 / 914 8 / 203
Dimension: ID, OD (in)/(mm) 1/2 / 12.7 , 0.77 / 19.5
Ship weight (lbs)/(kg) 0.26 / 0.12 0.33 / 0.15 0.42 / 0.19 0.64 / 0.29 0.95 / 0.43 0.44 / 0.20
Suggested pond depth The depth of pond is less than 8 ft (2.4M)
Suggested air pumpQuantity for air pumps
25L 1~3 1~2 1~2 1 1 1
40L 2~5 2~4 2~4 2~3 2~3 2~3
60L 4~6 4~5 4~5 3~4 2~3 3~4
80LH 6~8 6~7 6~7 4~5 3~4 3~6
100L 8~10 8~9 8~9 6~8 4~6 4~8
120LH 10~14 10~14 10~12 8~10 6~8 6~10



  • The above specifications are subject to change without prior notice.
  • Fitting size 3/8", 1/2", 5/8".

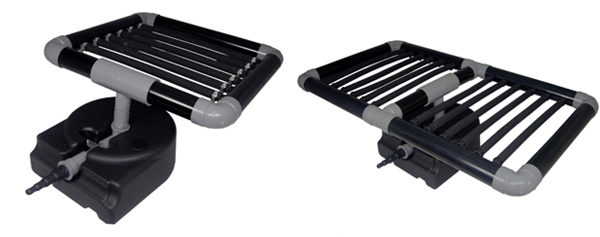

Aeration Kits for Air Diffuser Tubing Aeration Kits for Air Diffuser Tubing
It is the a simple and economic way for pond Aeration
Aeration Kits for Air Diffuser Tubing

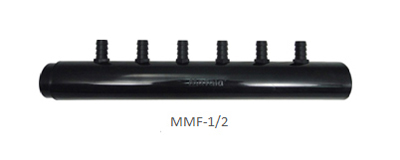

Manifold for  Air Diffuser  Hose/Tubing Manifold for  Air Diffuser  Hose/Tubing
Description : L13.6"x1/2" / 345mm x 1/2" barb for diffuser tubing

Manifold for  Air Diffuser  Hose/Tubing
