Spectrum (Stainless Steel) UVC System

Home > Products > UV-C Clarifiers > Spectrum (Stainless Steel) UVC System
INQUIRY
FAVORITE

Spectrum UV-C Systems

Features & Benefits:

  • Clear water easily.
  • High quality lamp and quartz sleeve maintains high output of 254nm.
  • Long service life requires little maintenance.
  • No flow friction.
  • Quick and simple installation.
  • Polished stainless steel reactor chamber, high UV reflection.
  • No chemicals added, environmentally friendly. The chamber is with high UV reflection.
  • Specification
  • Spare Parts

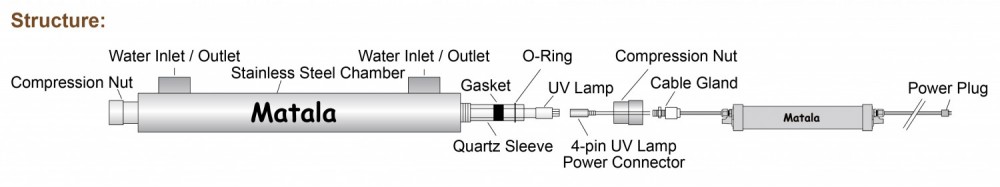

  • Structures & Dimensions
ModelSS-L16WSS-L25WSS-L40WTSS-L75WTSS-L40WSS-L75WSS-L150WSS-L300W

Voltage

100-240V, 50 / 60Hz

(Special electric ballast can use for full range voltage)

Peak flow rate up to

(GPH) / (LPH)

1,400

5,300

2,000

7,600

3,500

13,300

5,000

18,950

4,000

15,200

5,700

21,600

6,500

24,650

7,000

26,500

17,000

64,350

** Max. suggested pond size

(gal) / (L)

3,000

11,400

 4,000

15,200

6,000

22,750

10,000

37,900

7,000

26,500

11,500

43,550

13,000

49,250

15,000

56,800

30,000

113,600

UV lamp 16W 25W 40W 75W 40W 75W 75W x 2 75W x 4
Ballast watt 16W 25W 40W 75W 40W 75W 150W  150W x 2

Chanber dimensions: Dia. L

(in) / (mm)

Ø2-1/2" x 14.2"

Ø64 x 360

Ø5.5" x 35.4"

Ø140 x 900

 Ø5.5" x 35.4"

Ø140 x 900

Ø5.5" x 35.4"

Ø140 x 900

 Ø5.5" x 35.4"

Ø140 x 900

Ø5.5" x 35.4"

Ø140 x 900

Inlet / Outlet ports (PT/NPT)

(in)

1-1/4" Outside

thread

1-1/2" Outside

thread

2" Outside

thread

3" Outside

thread

Chamber meterial / Max. pressure (psi)

304 Stainless Steel / 125PSI

UV rated lamp life (hrs.) Up to 9000 hours

Package dimensions: LxWxH

(in) / (mm)

22.8x5.9x4.6

580x150x118

30.0x5.9x4.6

765x150x118

 37.0x7.1x5.1

940x180x130

38.2x8.5x11.2

970x215x285

38.2x8.5x18.3

970x215x465

Ship weight (lbs) / (kg)

8.2 / 3.7

8.8 / 4 12.8 / 5.8 12.8 / 5.8 18.5 / 8.4 18.5 / 8.4 24.3 / 11.0 41.9 / 19.0
Spare parts
UV Lamp TUV16T5 4P-SE TUV25T5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE
Quartz Sleeve QS-L16W QS-L25W QS- L40/300W
Ballast BL-L16W BL-L25W BL-L40W BL-L75W BL-40W BL-75W BL- L150W

• The data for wastewater treatment is different from pond applications. It depends on the quality of water resources and the control targets (bacteria and virus).

• The above specifications are subject to change without prior notice.  • Lamp useful life: 9000 hours (source of data from PHILIPS).

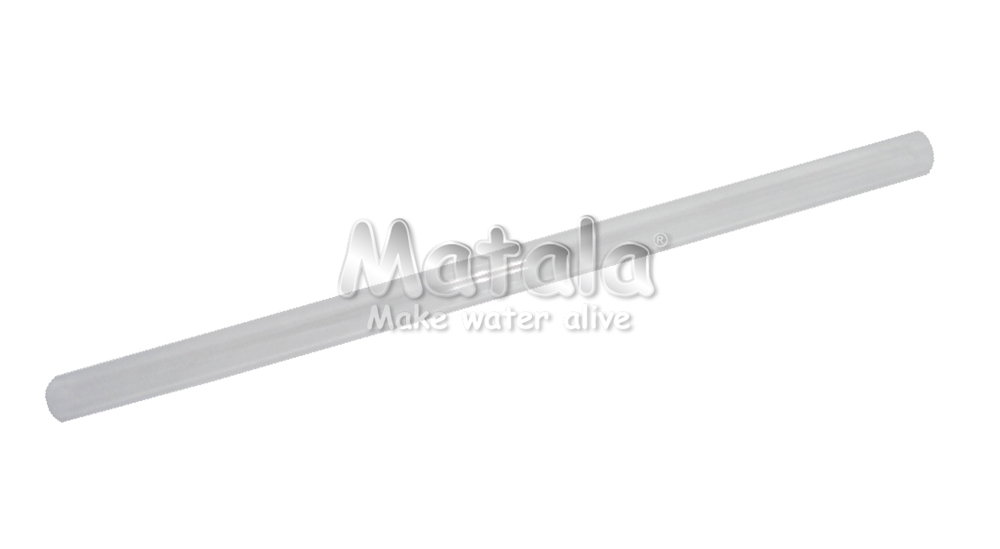

UV Lamp Quartz Sleeve Ballast
UV Lamp Quartz Sleeve Ballast



Spare Parts for Spectrum UV-C


Spectrum UV-C Model typeSS-L16WSS-L25WSS-L40WTSS-75WTSS-L40WSS-L75WSS-L150WSS-L300W

UV Lamp

TUV16T5 4P-SE TUV25T5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE
Quartz sleeve QS-L16W QS-L25W QS-L40/300W
Ballast

BL-L16W

BL-L25W BL-L40W BL-L75W BL-L40W

BL-L75W

BL-L150W

Matala Structure
