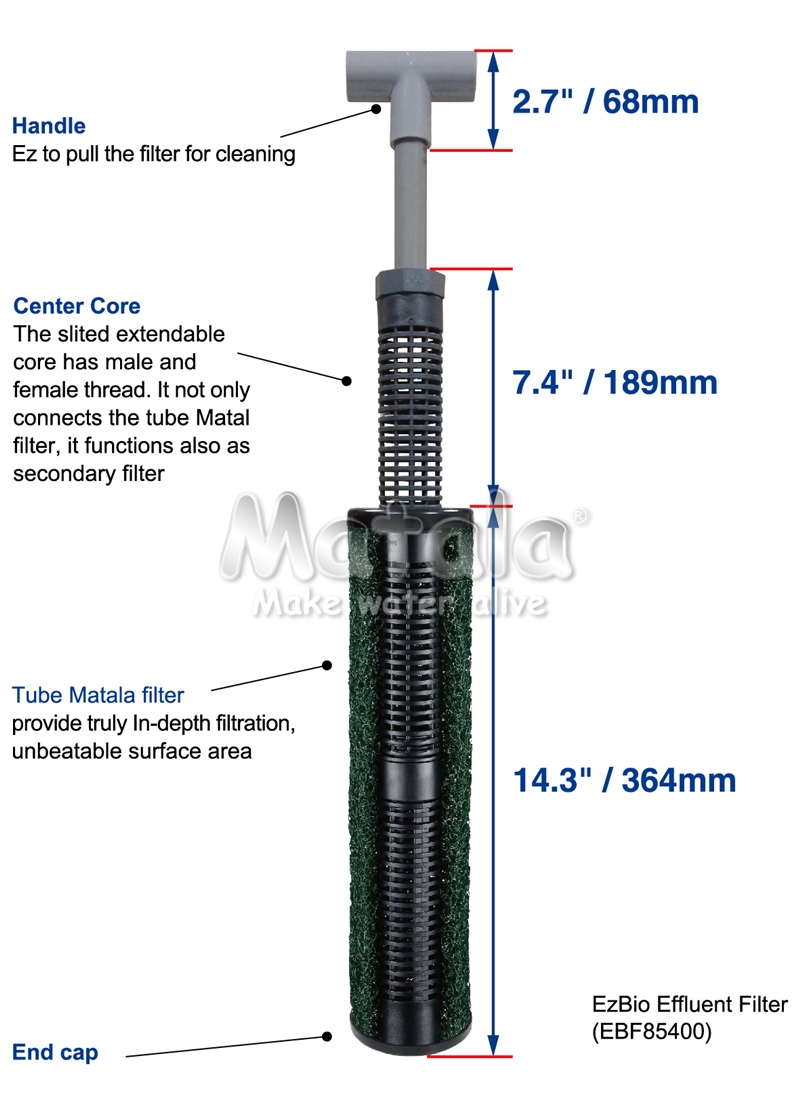

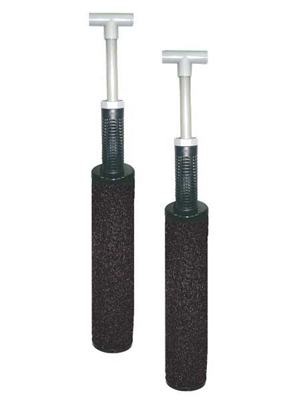

Ezbio Residential Effluent Filter
Fits inside any 4" sanitary tee
Feature & benefits:
Easily install and retrofit:
- Fits inside any 4" sanitary tee
- One step simple slide/pull into/from the 4" sanitary tee
- Easily installed in minutes inside new or existing tanks
High Efficiency: in-depth filtration
- Removes about 2/3 of suspended solids
- Big flow area from 1080-1990 cm², depending on filter length
- Large surface area from 4600 - 8465 cm², depending on filter length
Long lifetime:
- Build in corrosion-proof construction
Low Maintenance time and cost:
- 5 - 10 times more flow area, 10 - 30 time more surface area than others
- Easily cleaned by simply hosing off
- Extending drain field life
| Product Code | TM-100E/360 | TM-100E/530 | TM-100E/700 |
|---|---|---|---|
| Diameter of the filtration section- Tube Matala | 100mm, 4" | 100mm, 4" | 100mm, 4" |
| Length of the filtration section- Tube Matala | 360mm, 14" | 530mm, 21" | 700mm, 28" |
| Flow Area | 1131cm², 175in² | 1665cm², 258in² | 2199cm², 341in² |
| Surface Area | 6601cm², 1050in² | 9719cm², 1575in² | 12,836cm², 2632in² |
- The above specifications are subject to change without prior notice.
