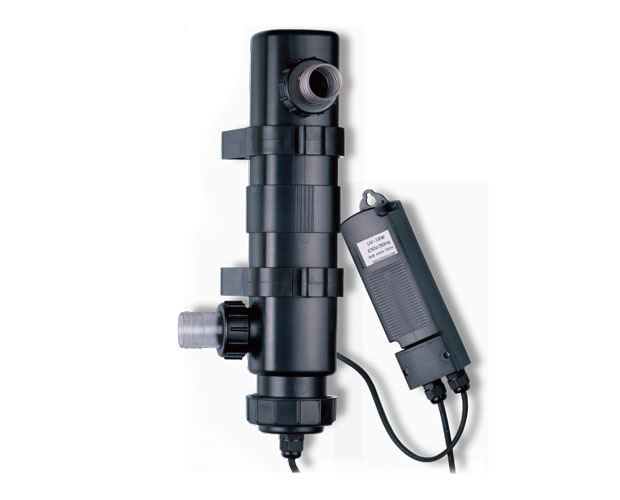

Matala pond UV-C Clarifiers are designed for Koi ponds and water gardents to help suppress blooms of suspended green algae, harmful bacteria, parasites, fungi, protozoan and viruses.
Even in a balanced pond ecosystem, sudden blooms of such organisms can occur due to abnormal changes of weather, fish feeding behavior, mineral nutrient levels, etc. These blooms may result in green water, lethal oxygen levels or weakened health conditions for fish and aquatic plants.
Feature & Benefits:
- Suppress blooms of suspended green algae, harmful bacteria, parasites, fungi, protozozn and viruses.
- High quality quartz sleeves allow transmission of over 95% of the UV light.
- Easy installation with stepped hose tails supporting 1", 1¼" and 1½" tubing.
- Provided with inner thread of 1¼" and an outer thread of 1½"
- Uses PLS type UV bulbs
- Translucent hose tails provide blue light monitoring
- Entire device is UV resistant
- Includes 4.6M (15')power cord with in line transformer
| Model | UVC9W | UVC13W | UVC18W | UVC36W |
|---|---|---|---|---|
| Voltage | 115V/60Hz / 230V/50Hz | 115V/60Hz | 115V/60Hz / 230V/50Hz | 115V/60Hz / 230V/50Hz |
| Suitable for pond volume up to (Gal.) / (L) | 700~1,400 / 2,600~5,300 | 1,200 / 4,500 | 1,500~3,000 / 5,600~11,300 | 2,200~4,400 / 8,300~16,600 |
| Suitable for koi pond volume up to (Gal.) / (L) | 400~700 / 1,500~2,600 | 600 / 2,250 | 800~1,500 / 3,000~5,600 | 1,600~2,000 / 6,000~8,300 |
| Recommended flowrate up to (GPH) / (LPH) | 700 / 2,600 | 1,500 / 5,600 | 1,500 / 5,600 | 2,200 / 8,300 |
| Recommended hose diameter (in) / (mm) | 1 / 25 | 1 1/4 / 32 | 1 1/2 / 38 | 1 1/2 / 38 |
| Threaded in & outlet connections (in) / (mm) | 1 1/4 / 32 | |||
| Dimensions :Dia.xH (in) / (mm) | 15x10x5 / 380x250x120 | 15x10x5 / 380x250x120 | 15x10x5 / 380x250x120 | 3x22 / 80x550 |
| Weight (lbs) / (kg) | 5 / 2.2 | 6 / 2.5 | 6 / 2.5 | 7 / 3.2 |
| Spare Parts | Part Number | |||

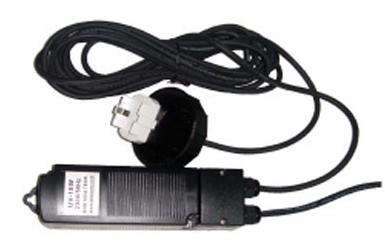

| Ballast (with Screw cover) | BL-9W | BL-13W | BL-18W | BL-36W |

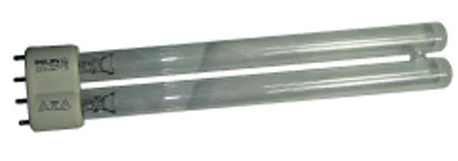

| UV Lamp | PL-9W | PL-13W | PL-18W | PL-36W |
| Quartz Sleeve (with Oring) | QS-9W | QS-13W | QS-18W | QS-36W |

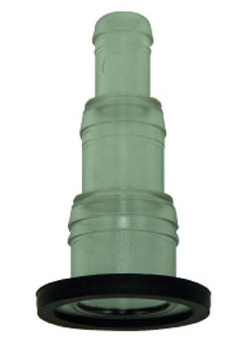

| 3 Step Hose Adapter (with Oring) | UVC-AD3 | |||

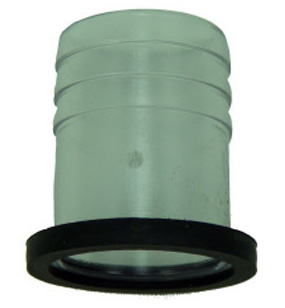

| Hose Adapter (with Oring) | UVC-AD | |||
| Collar for UVC | UVC-CL | |||

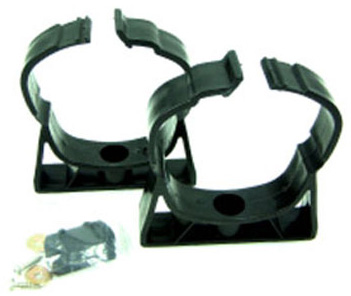

| Holder for UVC | UVC-HD | |||
- The above specifications are subject to change without prior notice.
 |
 |
 |
 |
 |
 |
 |
| Ballast | UV Lamp | Quartz Sleeve | 3 Step Hose Adapter | Hose Adapter | Collar | Holder |
| UV-C Clarifier Model | UVC9W | UVC13W | UVC18W | UVC36W |
|---|---|---|---|---|
| Spare Parts | Part Number | |||
| Ballast (with Screw cover) | BL-9W | BL-13W | BL-18W | BL-36W |
| UV Lamp | PL-9W | PL-13W | PL-18W | PL-36W |
| Quartz Sleeve (with Oring) | QS-9W | QS-13W | QS-18W | QS-36W |
| 3 Step Hose Adapter (with Oring) | UVC-AD3 | |||
| Hose Adapter (with Oring) | UVC-AD | |||
| Collar for UVC | UVC-CL | |||
| Holder for UVC | UVC-HD | |||
