Spectrum ( Stainless Steel ) UVC System

Home > Products > UV-C Disinfection > Spectrum ( Stainless Steel ) UVC System
INQUIRY
FAVORITE

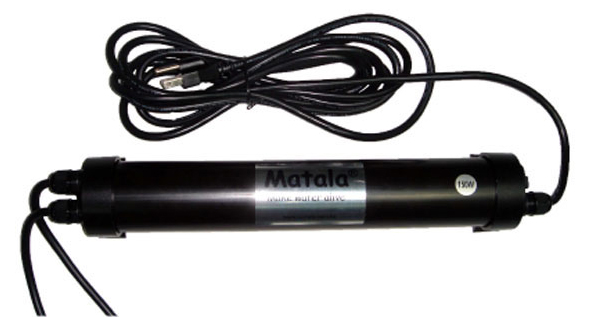

Spectrum UV-C Disinfection Systems
The "Silver Bullet" for water disinfection or controlling green water algae blooms. Quick and simple to install featuring a long service life that requires little maintenance. Matala Stainless Steel High Output ultraviolet Disinfection Systems



Features & Benefits:

  • High quality lamp and quartz sleeve maintains high output of 254nm.
  • Quick and simple installation.
  • High flow rates possible due to high output lamps, and a single big bore body diameter.
  • Long service life requires little maintenance.
  • Visual LED display indicates when unit needs service.
  • Polished stainless steel reactor chamber, high UV reflection.
  • Includes 17' power cord with in line transformer
  • 2" inlet / outlet male threads.
  • No chemicals added, environmentally safe.
  • Helps to control pathogenic microorganisms.

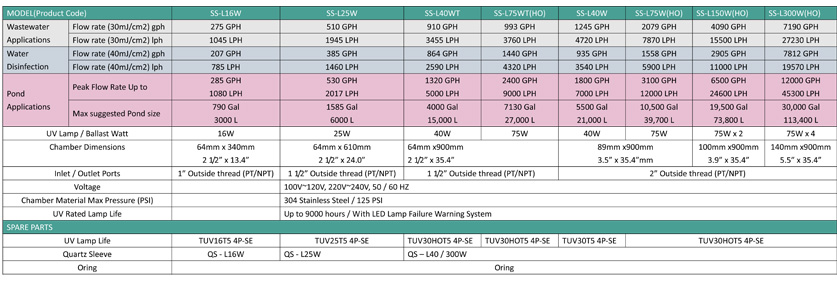

  • Specification
  • Spare Parts
  • Structures & Dimensions



* The above specifications are subject to change without prior notice.
**Suggested pond size depends on filter size, fish load, sunshine and plant coverage. Multiply pond gallon x0.70 for extreme conditions.

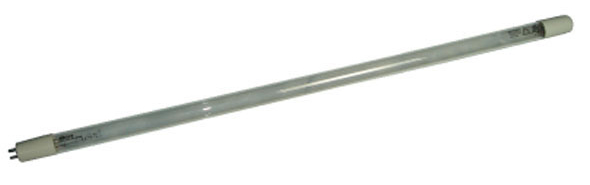

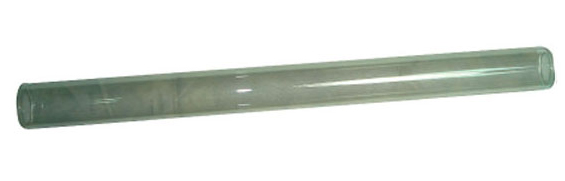

Ballast UV Lamp Quartz Sleeve Oring Union
Ballast UV Lamp Quartz Sleeve O-Ring Union



Spare Parts for Spectrum UV-C Disinfection System

Spectrum UV-C Model type SS-L16W SS-L25W SS-L40WT SS-L75WT(HO) SS-L40W SS-L75W(HO) SS-L150W(HO) SS-L300W(HO)
UV Lamp TUV16T5 4P-SE TUV25T5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE TUV36T5 4P-SE TUV36HOT5 4P-SE
Quartz Sleeve QS-L16W QS - L25W QS - L40/300W
O-ring O-ring

Matala Structure

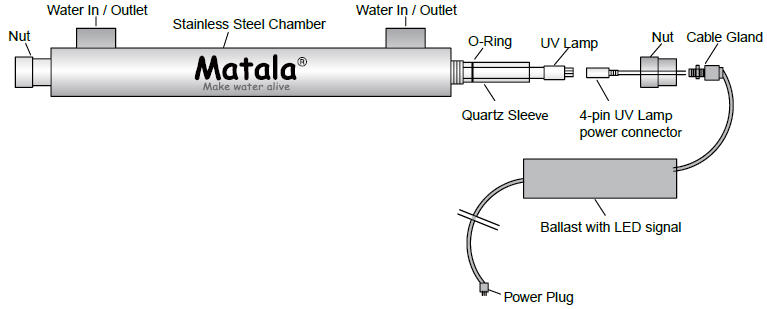

Structure and Dimensions Drawing for Spctrum UV C Disinfection systems:

Download:SS-L16W_Assembling__dimensions.pdf
Download:SS-L25W_Assembling__dimensions.pdf
Download:SS-L40-75WT_Assembling__dimensions.pdf
Download:SS-L40-75W_Assembling__dimensions.pdf
Download:SS-L150W_Assembling__dimensions.pdf
Download:SS-L300W_Assembling__dimensions.pdf
